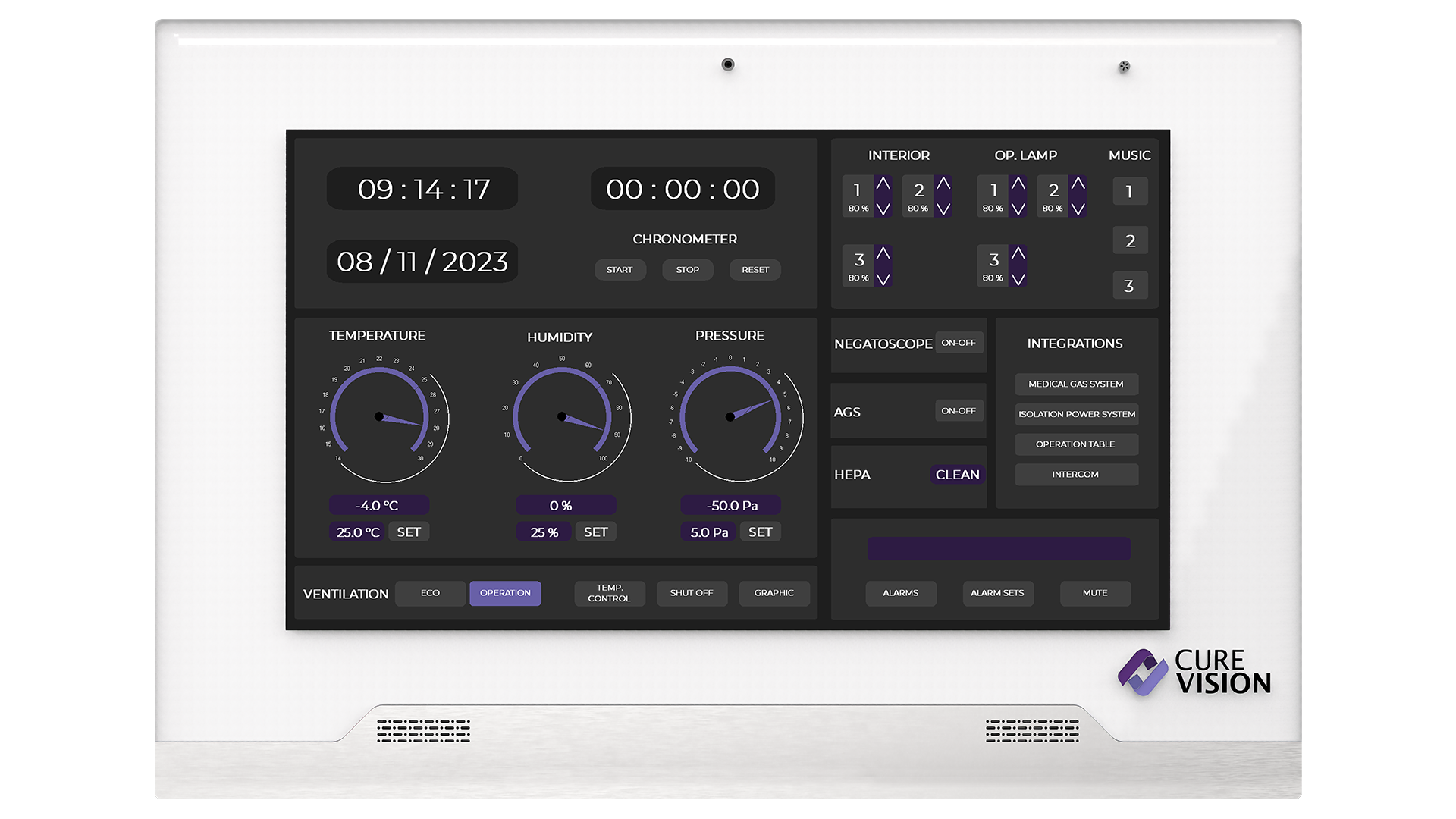

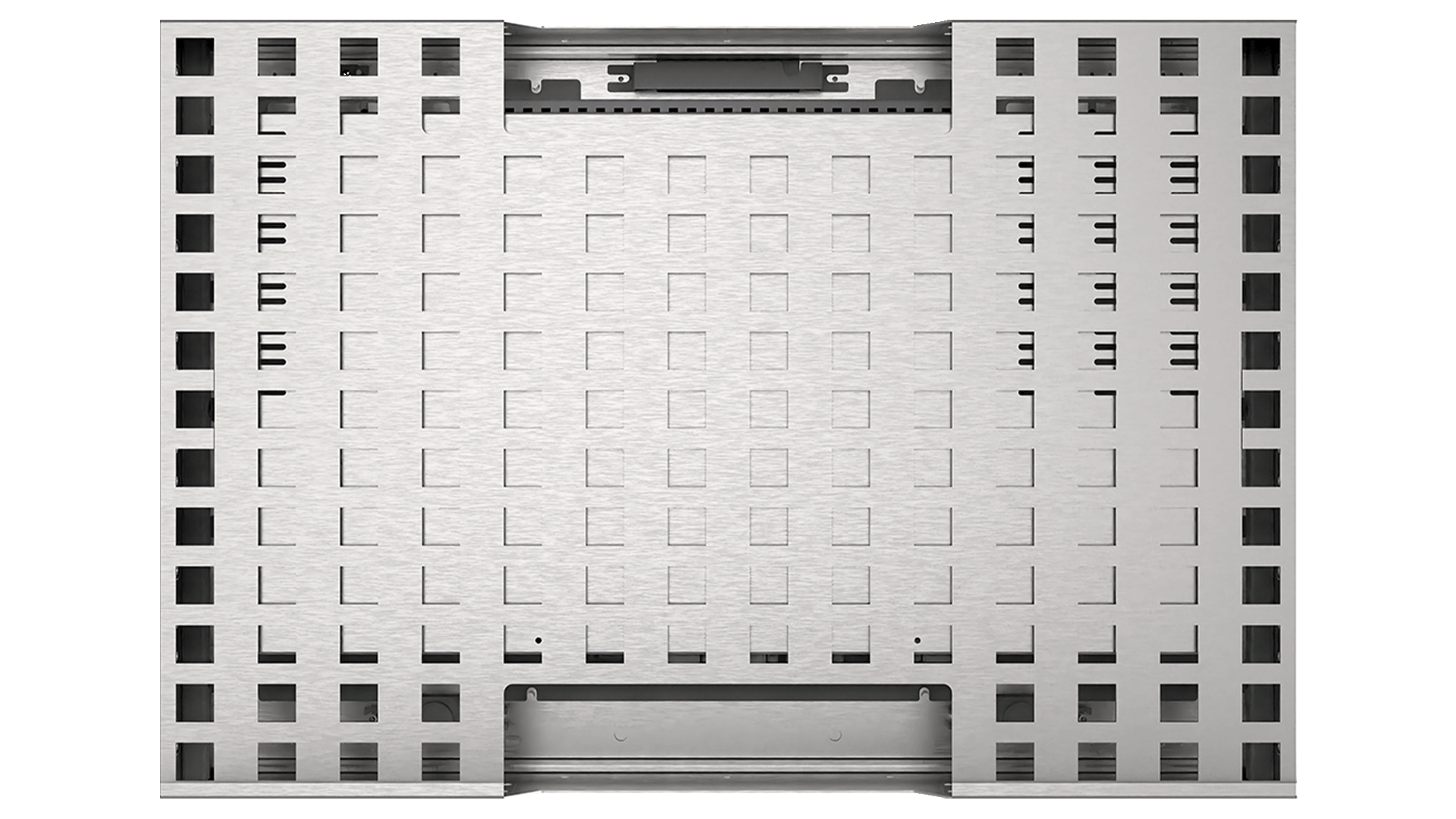

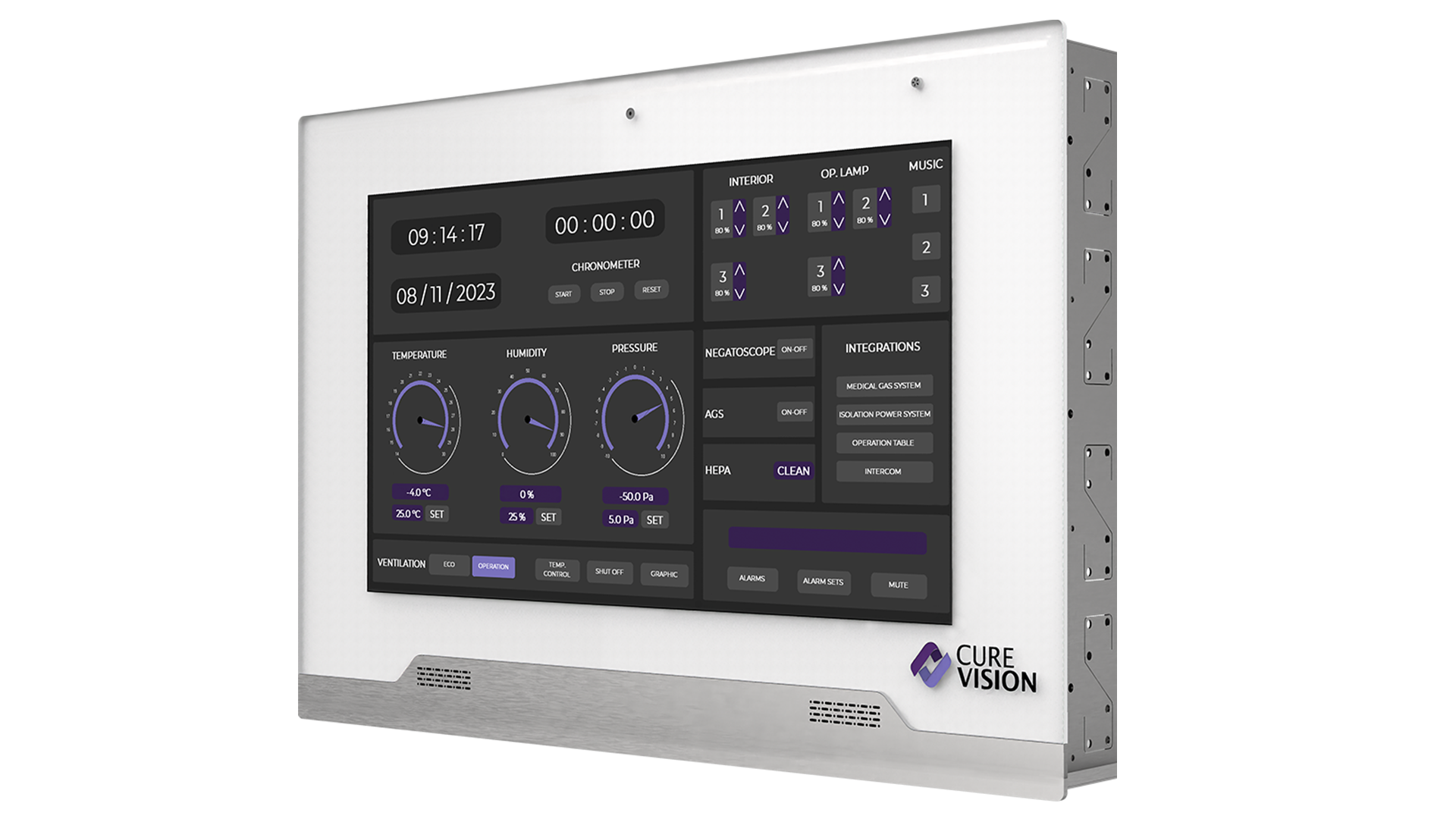

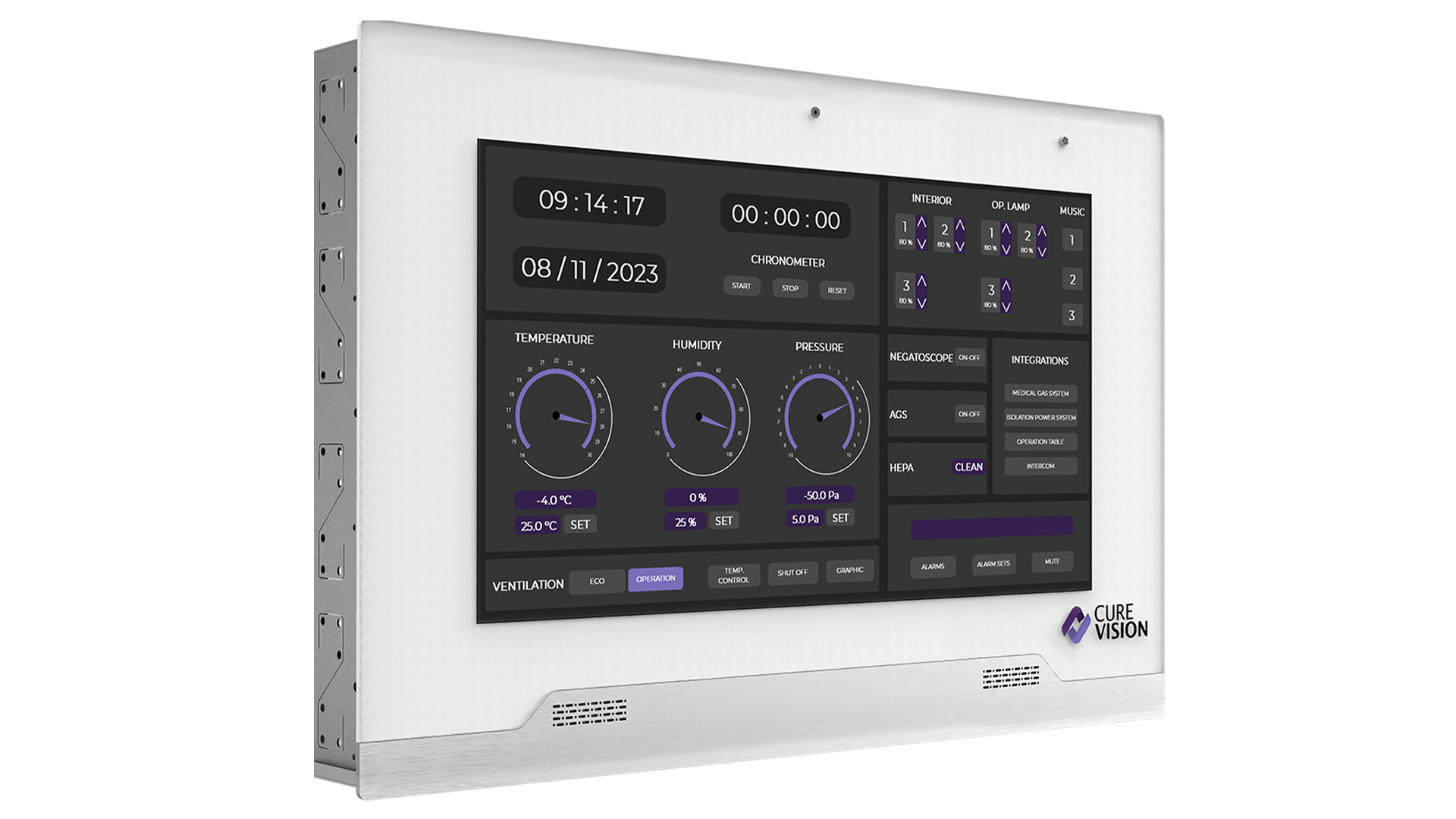

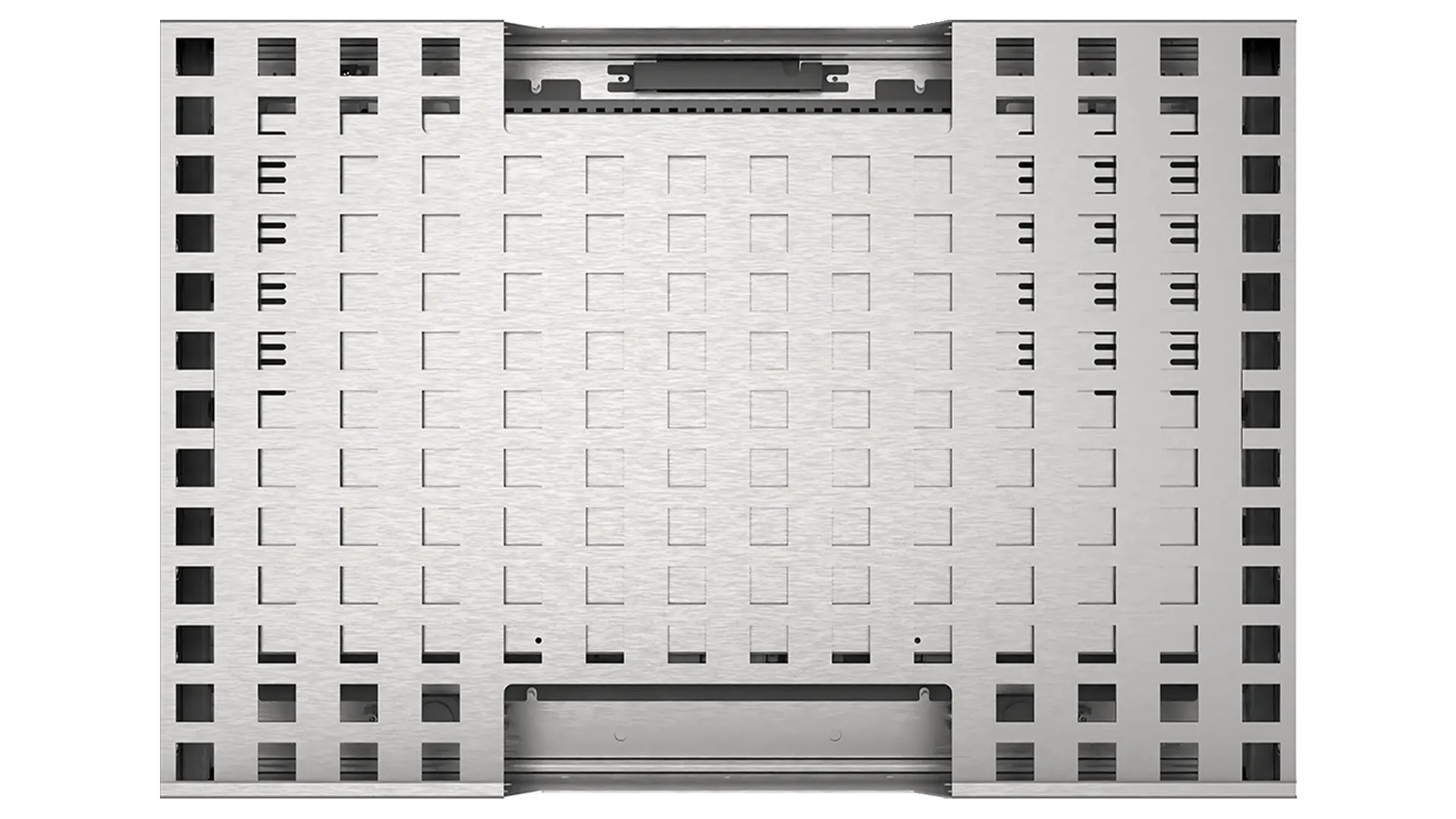

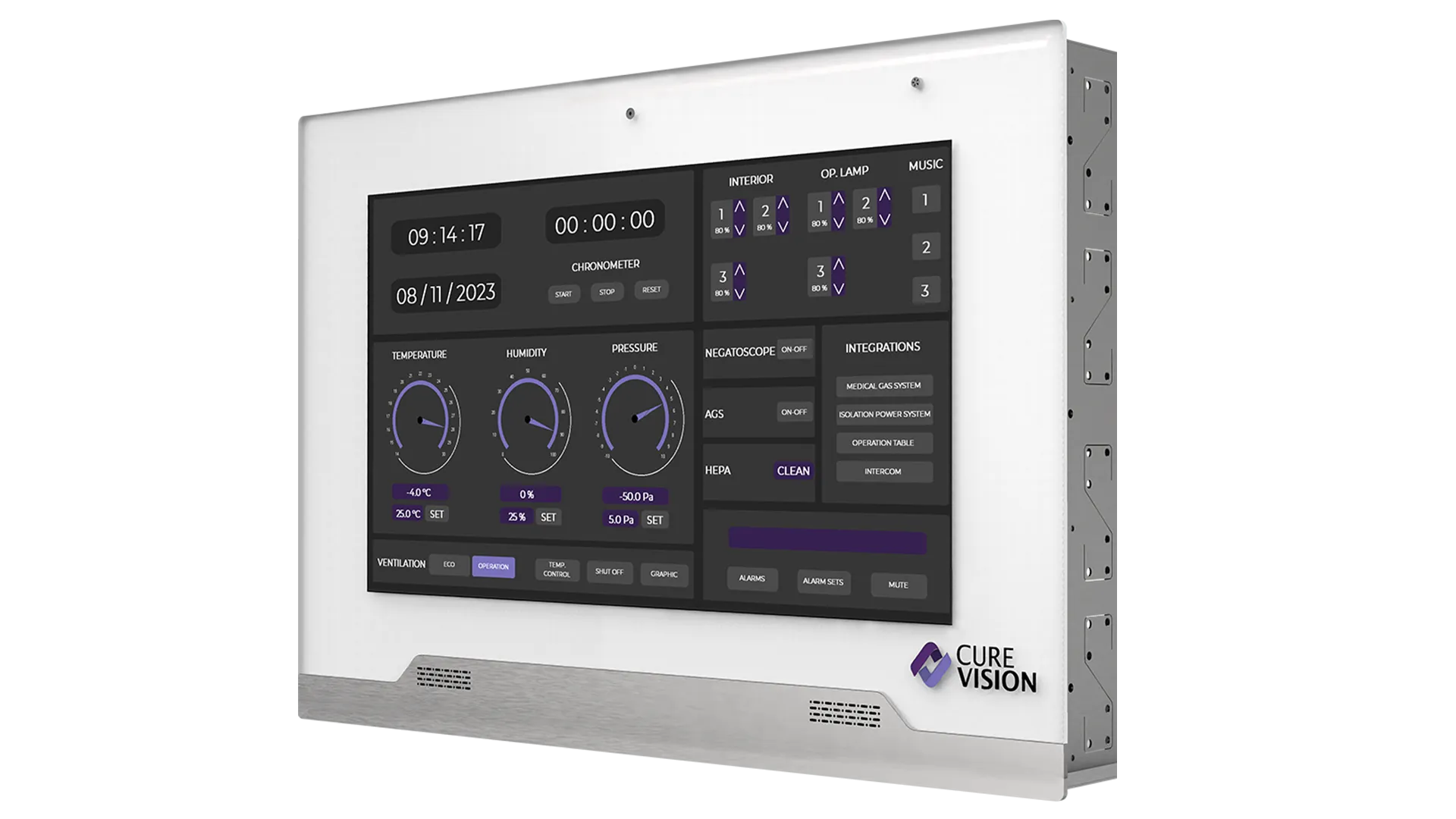

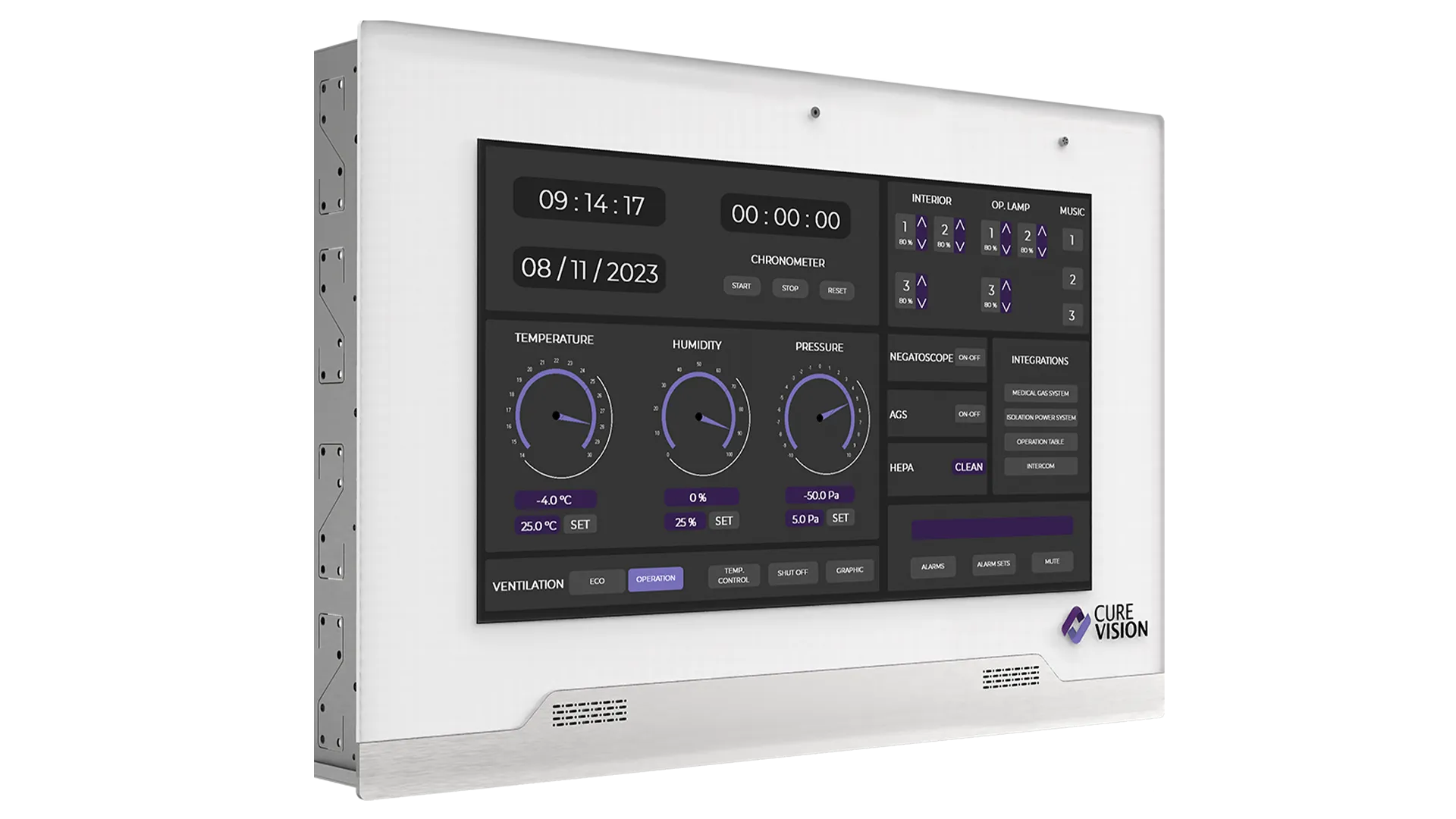

ORC-421 Series

21" Touchscreen OR Control Panel — HVAC, Lighting, Gas & Safety

The ORC-421 is CureVision's largest OR control panel — a 21-inch capacitive touchscreen workstation that centralizes control of every environmental and safety system in the operating room from a single wall-mounted interface.

With the largest display in the ORC series, the ORC-421 is designed for ORs where multiple team members need simultaneous, clear visibility of environmental parameters — temperature, humidity, HEPA status, lighting zones, gas alarms, and isolation power — without crowding around a smaller screen.

✓ Capacitive Touch  ✓ IP65 Front Protection  ✓ Built-in Installation

Key Specifications:

Environmental Monitoring & Control: Continuously monitors and controls temperature, humidity, differential pressure, and HEPA filter status — with real-time warnings for out-of-range conditions and automated alerts before sterility is compromised.

HVAC & Air Handling Control: Integrated BMS and HVAC control manages airflow, half-damper shut-off, and economic standby mode — reducing energy consumption during low-demand periods without manual intervention.

Lighting Control — Surgical & Armature Groups: Control surgical lights and four independent armature groups with individual dimmer functions — adjusting OR lighting precisely to each procedure's requirements without leaving the sterile field.

Medical Gas Alarm Integration: Monitors medical gas pressure levels across all OR gas lines — triggering audible and visual alarms when pressure deviates from safe operating limits.

Isolation Power System Monitoring: Continuously monitors the OR isolation transformer — detecting leakage, temperature, and current limit breaches with audible alarms, ensuring electrical safety for patients and staff.

Anesthetic Gas Purging Control: Precise control over anesthetic gas purging — ensuring safe removal of waste anesthetic gases from the OR environment during and after procedures.

Hands-Free Video Intercom: Built-in hands-free video intercom enables communication between the OR and adjacent areas — scrub room, control room, or preparation area — without breaking sterile protocols.

Digital Negatoscope Control: Control the digital negatoscope directly from the ORC interface — enabling radiology image display management without a separate control unit or leaving the sterile field.

Operation Table Control (Optional): Optional integration with the OR surgical table — allowing position adjustments to be managed from the central touchscreen without a dedicated table control pendant.

Audio & Music System Control: Complete control over the OR audio and music system — allowing the surgical team to adjust volume and source directly from the touchscreen without manual intervention.

Digital Clock, Procedure Timer & Stopwatch: Real-time digital clock, procedure stopwatch, and timer — displayed on the ORC screen for precise timekeeping during critical phases of the procedure.

Trend Graphs & Parameter Archiving: Historical trend graphs for temperature, humidity, pressure, and HEPA differential pressure — archived automatically for compliance documentation, facility audits, and regulatory reporting.

Multi-Level User Access Control: Password-protected access with configurable user levels — ensuring only authorized personnel can modify critical OR environment settings.

Is the ORC-421 Right for Your OR?

The ORC-421 is the right choice if:

• Your OR requires maximum screen visibility — multiple team members need to read environmental parameters simultaneously from different positions in the room
• You are equipping a large OR, hybrid OR, or teaching suite where the control panel is viewed from a distance
• Your facility prefers a larger touchscreen interface for ease of use during procedures
• You want the largest available ORC format with the full CureVision environmental control feature set

Consider the ORC-419 instead if a 19-inch display meets your visibility requirements.
Consider the ORC-417 instead if wall space is limited and a compact control panel is preferred.

Want to see the ORC-421 configured for your OR?

Our team will walk you through installation options, BMS integration, and compatibility with your existing OR infrastructure.
