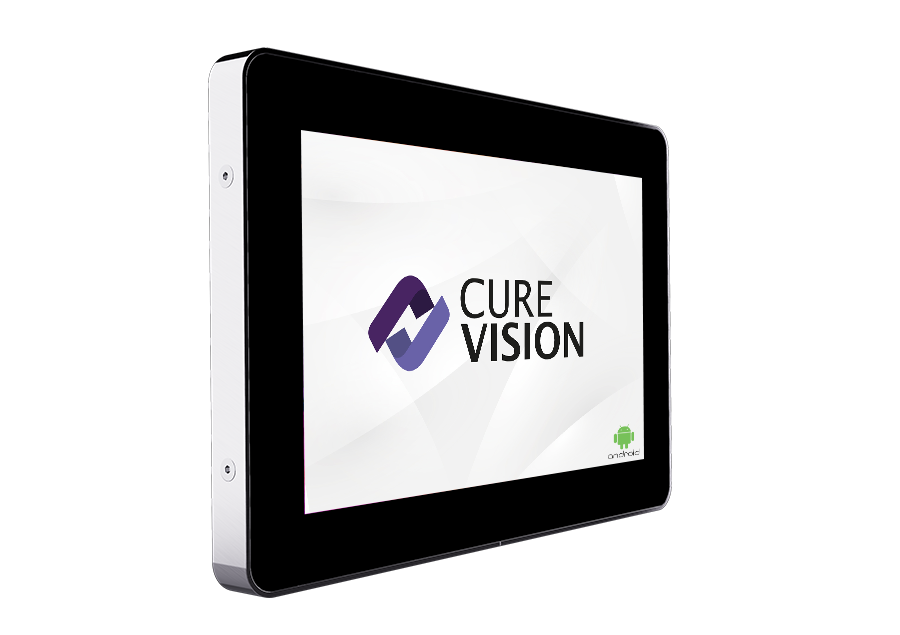

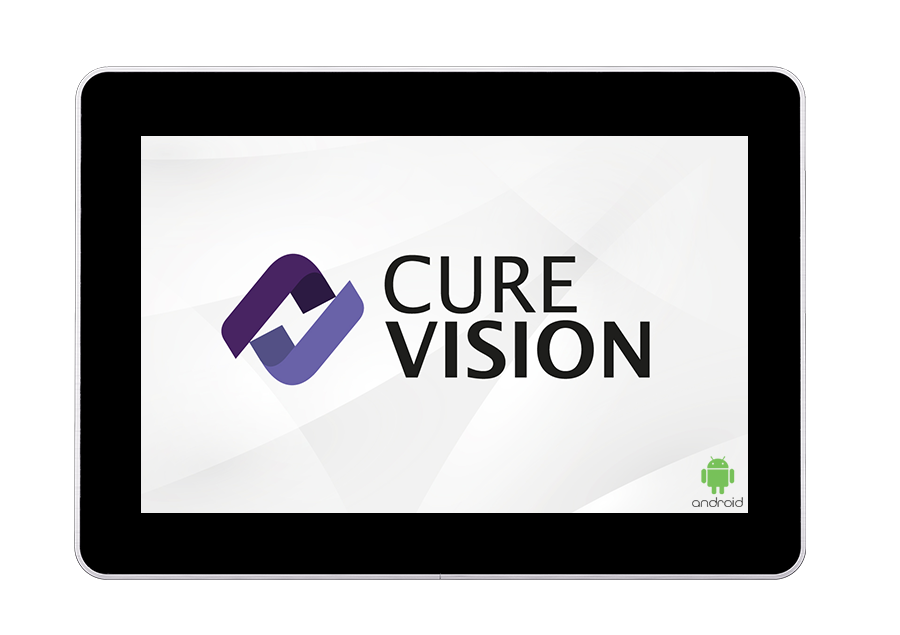

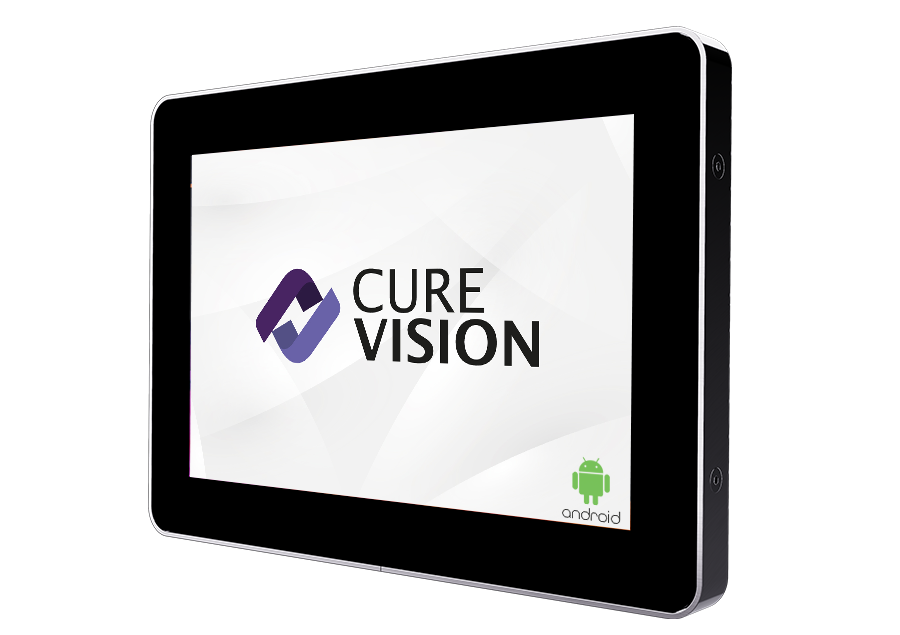

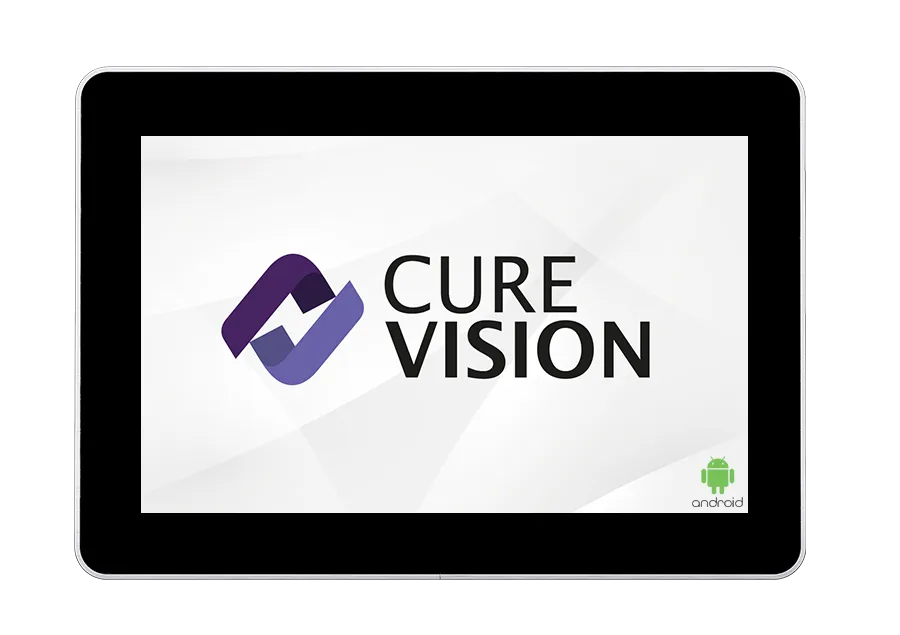

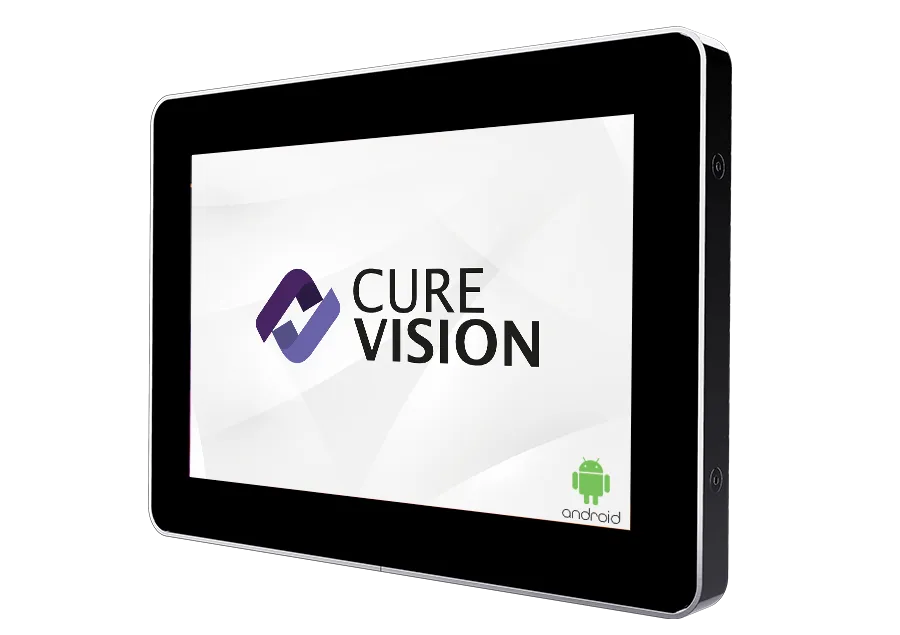

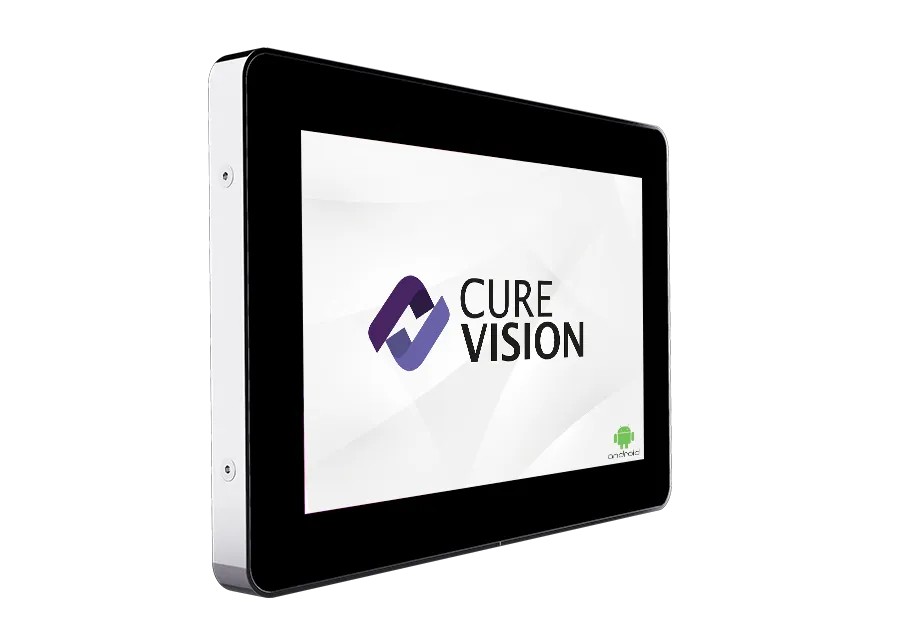

TPC-310 AND Series

10.1" Touchscreen Door Information Display — HIS Integration, PoE & Android, No PC Required

The TPC-310 AND is the Android version of the TPC-310 — running on Android 11 with onboard storage, no external PC required. Same 10.1-inch capacitive touchscreen, HIS integration, and PoE support in a simpler, self-contained configuration.

✓ Android 11 Built-In ✓ No PC Required ✓ PoE Support

Key Features:

HIS Integration — Real-Time Queue & Room Data: Displays appointment queues, doctor availability, and room status pulled directly from your Hospital Information System — automatically updated without manual content changes.

10.1" Capacitive Touch — Standard: Responsive capacitive touchscreen as standard — allowing staff and patients to interact directly with appointment information, check-in workflows, or facility directories at the door.

PoE Support — Single Cable Installation: Power over Ethernet delivers both data and power through a single network cable — eliminating the need for a dedicated power outlet at each door-side installation point.

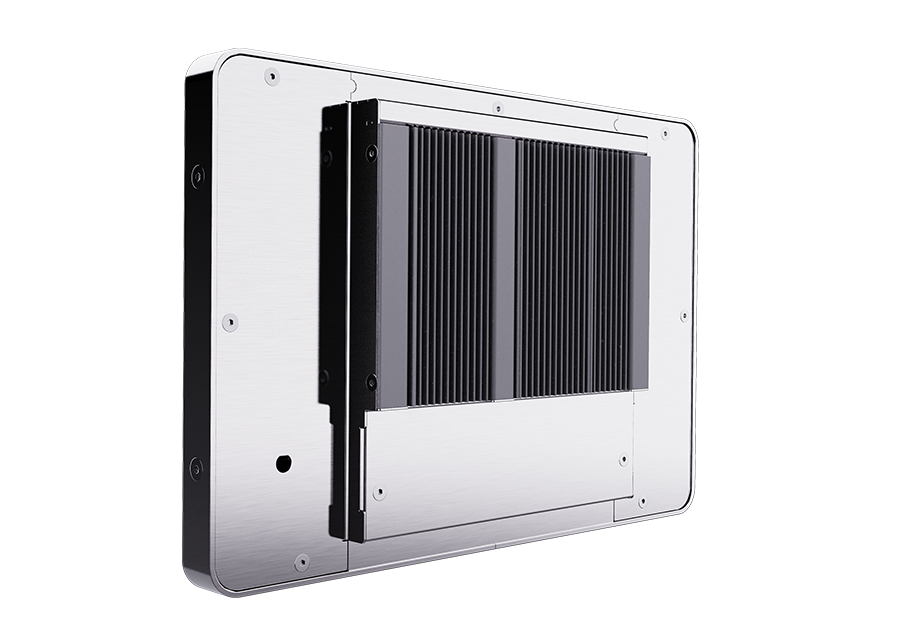

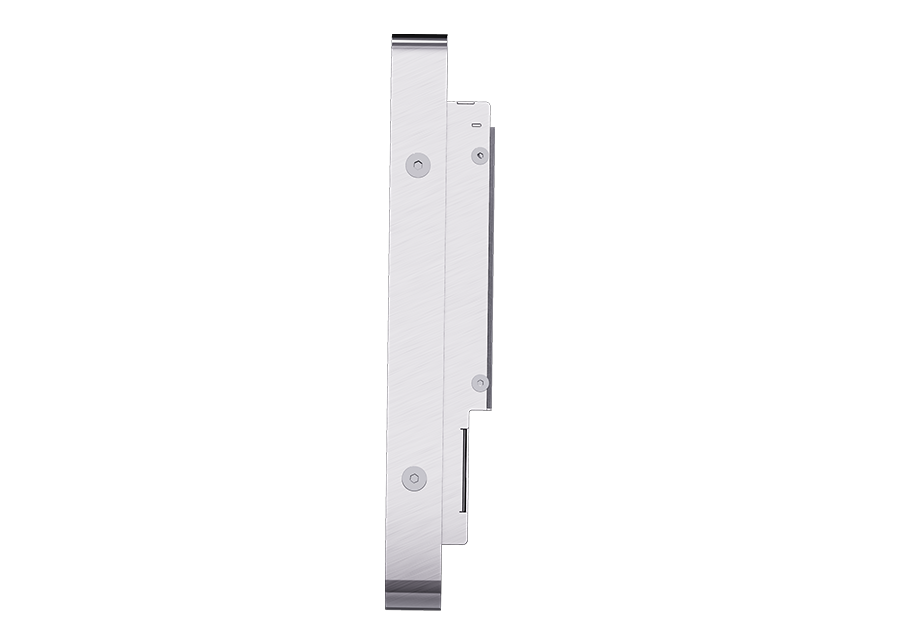

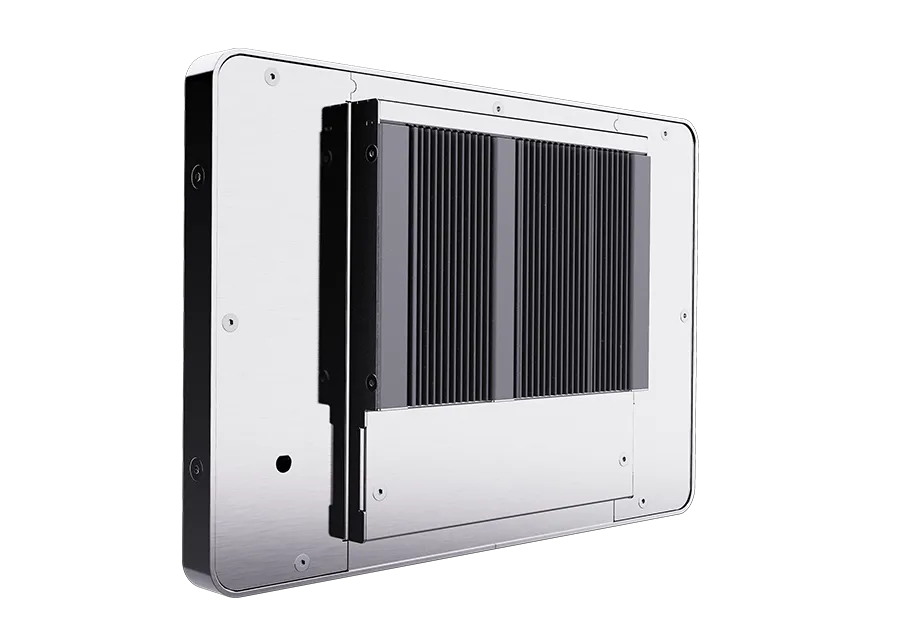

Stainless Steel Construction: Heavy-duty stainless steel housing with glass front — built for continuous operation in hospital corridors and clinical environments.

Remote Management & Troubleshooting: Remote connection capability enables content updates, system diagnostics, and issue resolution without on-site visits.

Corporate Branding — Custom Color & Logo: Available in custom institutional colors with logo integration — maintaining consistent brand identity across all patient-facing door signage.

Is the TPC-310 AND Right for Your Installation?

Choose if:

• You need the same touchscreen door display without an external PC — Android 11 handles content and HIS integration directly
• Simpler deployment with minimal IT infrastructure is preferred
• PoE simplifies your installation — single cable per display point

Need PC performance? → TPC-310
Need higher brightness? → HPC-310 AND (400cd)
Need larger? → OPC-315, OPC-317, OPC-319

Want to see the TPC-310 AND configured for your facility?

Our team will advise on HIS integration, PoE setup, and Android content management options for your door-side deployment

🔗 Request a Consultation

Elegant Design

Customizing with Corporate Color and Logo

Durable and Long Lasting

Sectors

Polyclinic

Technical Specifications

System

CPU :

All Winner R18, Quad Core,Cortex A53 1.5 GHz

Cache :

N.A.

Memory :

1G LPDDR3 (Option 2G)

Video RAM :

N.A.

Control :

N.A.

Watchdog Timer :

Support

System Fan :

Android 11.0

I/O

Serial Port :

3 x RS-232 ports (Optional)

Parallel Port :

N.A.

USB Port :

2 x USB 2.0 uyumlu

KB / MS :

N.A.

LAN :

1x Lan

Wireless LAN :

802.11 b / g (Opsiyonel)

Audio :

Support L/R phone jack and 10W / 8Rx2

Expansion Slot :

N.A.

Data Storage

HDD / Type :

EMMC

Feed

Input :

110 / 220VAC veya 12 / 24VDC veya PoE

Extra Video Output

Type :

HDMI

Max. Resolution :

1920 x 1080

LCD Screen

Type and Size :

10.1” / 16:9

Max. Resolution :

1280 x 800

Pixel Pitch :

0.297mm x 0.297mm

Max Color :

16.7 M

Brightness (cd/m2) :

250cd

Contrast Ratio :

700/1

Viewing Angle :

160°(H),160°(V)

Back Light MTBF :

50,000 hours

Touch Screen :

10.1” Capacitive Touch

Mechanical & Environmental Features

Operating Temperature :

0 ~ 60°C

Storage Humidity :

5 ~ 95% (non-condensing)

Case :

Heavy-Duty Metal Case

Front Frame :

Glass

Weight :

Variable according to screen size (1—5 kg)

Dimensions :

(WxHxD) Variable by screen size

Mounting :

Built-in

Order Code

CPU :

Cortex A53

PSU :

AC110/220, DC12/24

RAM :

HDD :

EMMC8G, EMMC32G(Optional)

Wifi :

Optional
