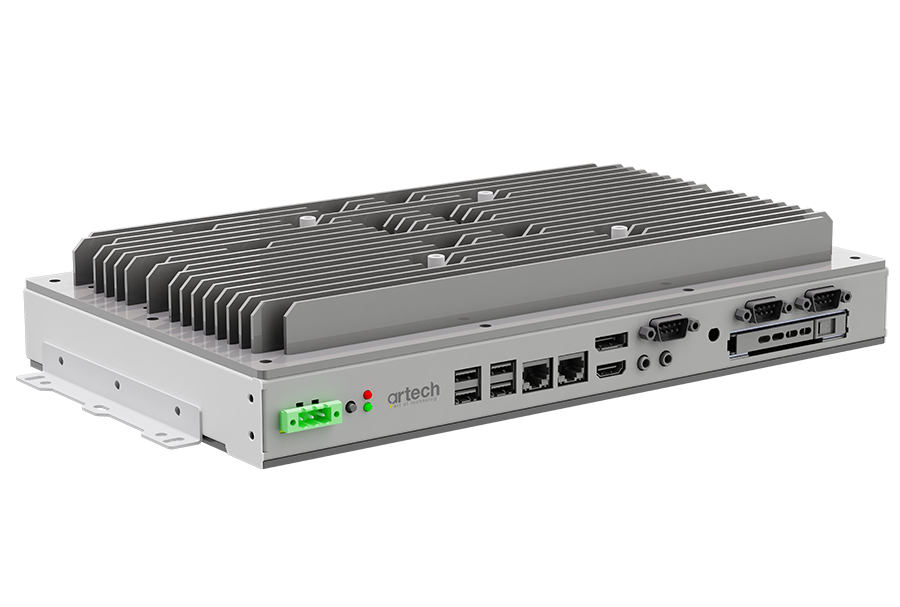

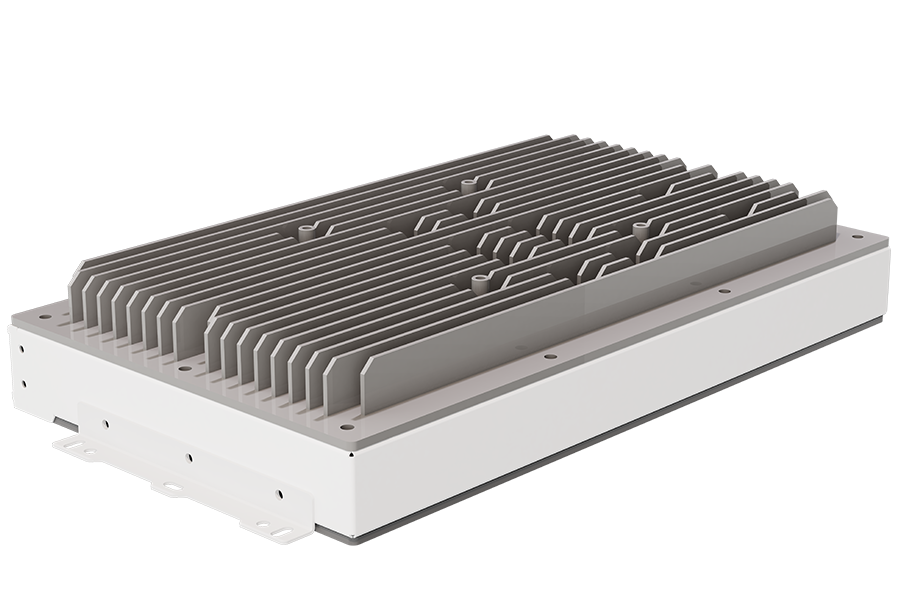

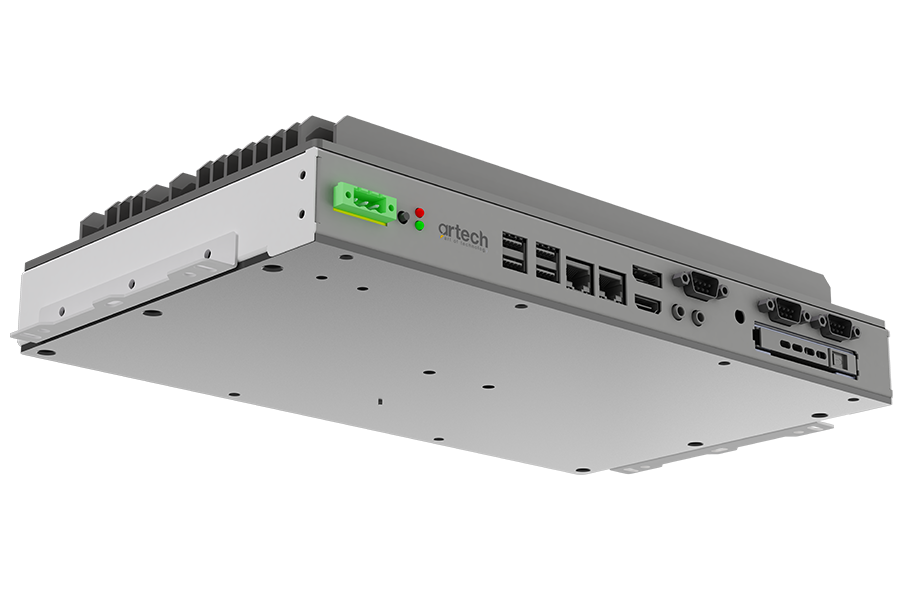

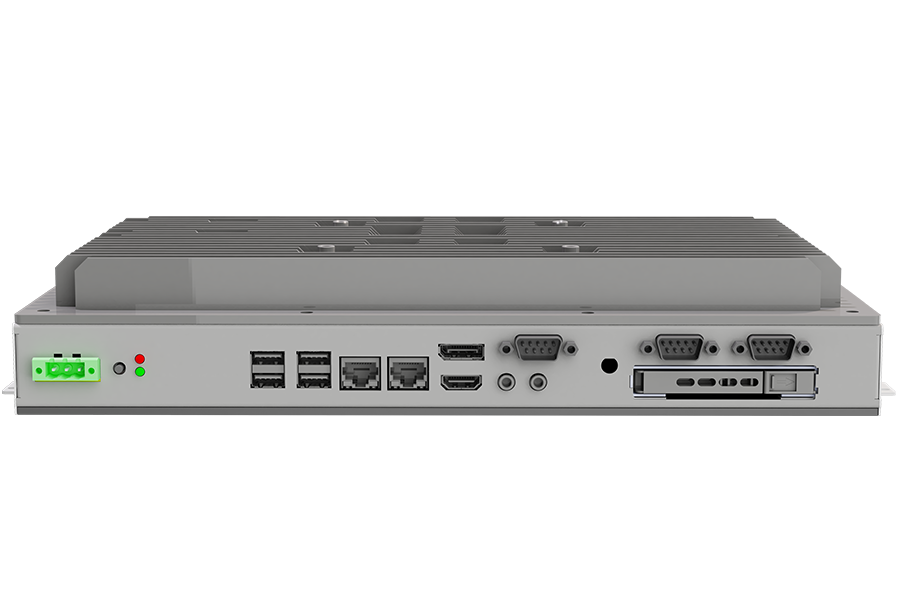

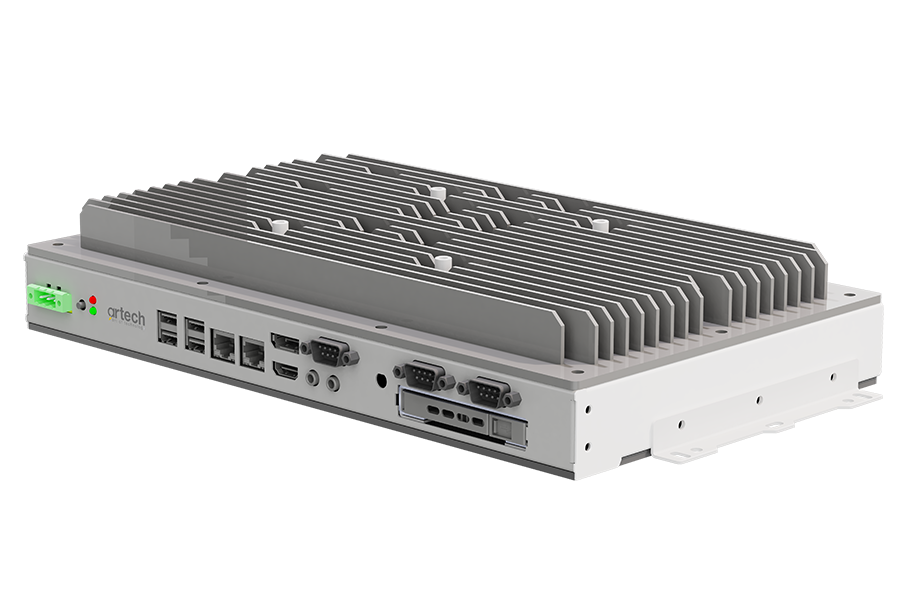

BPC-600 Series
Artech Barebone PC’s are industrial computers produced from high-quality industrial parts and used in production environments with integrated designs and robust structures.
- Robust Design
- Power Supply Filter
- Industrial Dust Proof Aluminum and Stainless Steel
- Fanless Cooling
- Special Locked Slot for Easy Hard Drive Replacement
Compact Design
Special Lockable Slot for Easy Hard Drive Replacement (OPS)
Sectors
Technical Specifications
System
Cooling :
Ultimate Series Fanless Cooling System
CPU :
Intel i7/ i5/ i3
Cache :
By CPU
Memory :
8GB/ 16GB/ 32GB | DDR4 So Dimm | 0-80Cdeg Wide Temp. Range
Video RAM :
Shared Memory
Chipset :
H110
Watchdog Timer :
1sec. or 1min. step
System Fan :
Fanless
I/O
I/O Controller :
iTE® I/O Controller Chip
Serial Port :
2 x RS232/ 422/ 485
Parallel Port :
N.A
USB Port :
2 x USB 2.0, 2 x USB 3.0 by pin header 2 x USB 3.0 at I/O
LAN :
2 x RJ-45 Gigabit
Wireless LAN :
Optional (802.11 b/g/n* 2.4Ghz/5.8Ghz)
Audio :
Mic-in, Line-out
Expansion Slot :
N.A.
Data Storage
HDD / Type :
2.5” SATA 6Gb/s - QuickChange HDD Bay
SSD :
64GB/ 128GB/ 256GB/ 512GB | 0-70Cdeg Wide Temp. Range
Extra Video Output
Type :
HDMI/ DP
Max. Resolution :
Integrated Graphics Processor-Intel® HD Graphics support 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Maximum shared memory of 1024 MB
H/W Monitoring
* :
System voltage detection
** :
CPU/System temperature detection
BIOS
* :
2 x 64 Mbit flash
** :
Use of licensed AMI UEFI BIOS / Support for DualBIOS™ / PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Mechanical & Environmental Features
Operating Temperature :
0 ~ 60°C
Storage Humidity :
5 ~ 95% (non-condensing)
Case :
Heavy-Duty Stainless Metal Case
Front Frame :
IP54
Weight :
4,5 kg
Power Supply
Power :
24VDC – Adapter is Included
